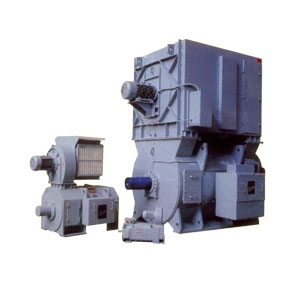

Dc motors

RANGE kW FRAME SIZE Small 0.75 to 300 80 to 250 Medium 150 to 1500 280 to 630 Large 720 to 6500 710 to 1000 by centre height up to 3100 MM by rotor dia

Category

Electric Motor

Condition

New

Brand

Kirloskar

request for quote

General Specificatioins


Standards	BS 5000/IS 4722
Insulation	CLASS F/CLASS H
Armature Voltage	110 to 1000 volts
Field Voltage	180 to 360 volts
Cooling	IC 01/06/0041/0666/W37A86/17/44
Protection	IP 23/44/54
Mounting	B3/B35/B5/V1/V5

FRAMESIZE	OUTPUT IN	Max.Arm. Current	Max. Safe Speed	Excitation Power	Time Constant for Field Ckt.	Cooling Air Reqmt.		Moment of Inertia GD2
	kW at 1500 RPM	(A)	(RPM)	(Watts)	(Secs)	VOL. (Lts/sec)	PR WG	(kg M2)
KLDC 100SX 100MX 100LX	4.0 6.0 7.6	40	6000 6000 6000	350 450 600	0.08 0.08 0.10	50	35	0.100 0.132 0.164
KLDC 112SX 112MX 112LX	9.3 12.5 15.0	60	6000 6000 6000	750 900 1000	0.11 0.12 0.13	100	60	0.172 0.220 0.254
KLDC 132SX 132MX 132LX	18.75 25.00 28.00	105	5000 4800 4500	900 1000 1150	0.16 0.18 0.19	140	90	0.508 0.556 0.600
KLDC 160KX 160SX 160MX 160LX	30.00 37.00 45.00 56.00	240	4000 4000 4000 4000	900 950 1050 1150	0.24 0.26 0.28 0.30	290	100	0.72 0.96 1.08 1.40
KLDC 180SX 180MX 180LX	70.00 80.00 90.00	300	3750 3750 3500	1100 1250 1400	0.33 0.33 0.33	400	110	1.84 2.04 2.20
KLDC 200SX 200MX 200LX	110.00 130.00 150.00	385	3500 3500 3250	1450 1600 1850	0.43 0.43 0.43	510	135	3.24 3.64 4.28
KLDC 225SX 225MX 225LX	160.00 180.00 200.00	675	3000 3000 2600	1900 2100 2300	0.57 0.57 0.57	710	140	6.80 7.60 8.30
KLDC 250SX 250MX 250LX	235.00 260.00 300.00	750	2500 2500 2300	2350 2600 3000	0.71 0.71 0.71	850	150	11.6 13.2 15.8
